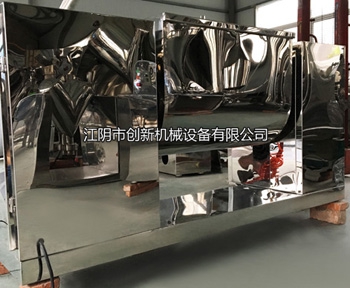

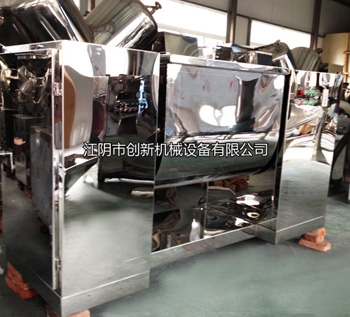

This machine is all stainless steel horizontal trough mixer, in the pharmaceutical, chemical, food for mixing powder or paste materials.

Working Principle：

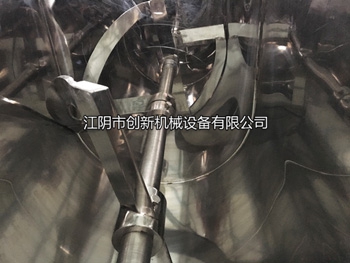

By mechanical rotation of the machine, so that S-type impeller rotating, flipping back and forth to promote the material, uniform mixing, operation, use of electrical control, mixing time can be set to automatically shut down, thereby enhancing the quality of each batch of mixed material.

Technical Parameters：

Model	50Type	100Type	150Type	200Type	300Type	400Type	500Type	600Type
Blade form	S single pulp
Working volume (L)	50	100	150	200	300	400	500	600
Stirrer speed (r / min)	24
Mixing angle down	<105°
Mixing power (kw)	1.5	2.2	3	4	5.5	5.5	7.5	11
Pouring motor (kw)	0.37	0.55	0.55	0.55	1.1	1.1	1.5	2.2
Dimensions (mm)	1200 ×450 ×950	1400 ×500 ×1000	1800 ×550 ×1150	2000 ×600 ×1200	2200 ×700 ×1250	2280 ×750 ×1250	2350 ×800 ×1300	2400 ×850 ×1350
Weight (kg)	280	350	410	450	520	580	680	750
